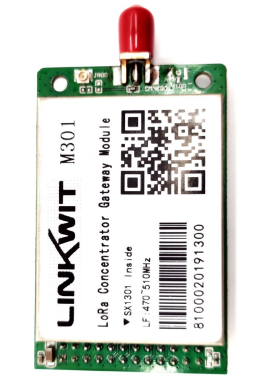

The M301 series gateway module is a high-performance transceiver with integrated radio frequency module. It adopts LoRa remote modulation and demodulation technology and supports LoRaWAN standard protocol and LoRa private protocol. The module adopts Semtech SX1301 and SX1255/SX1257 main chips, which are very suitable for the design of various IoT gateway transceivers. The module supports (G)FSK and LoRa modes, and can simultaneously receive up to 8 LoRa data packets with different spreading factors simultaneously. The module provides SPI and GPIOs interfaces, which are suitable for users to develop quickly.
- 49 LoRa receiver demodulators and 1 GFSK demodulator
- 8 receiving channels, adaptive receiving spreading factor, 1 sending channel, 1 FSK channel
- -142dBm receiving sensitivity@SF12 BW125kHz
- 25dBm maximum output power
- Support LoRaWAN standard protocol and LoRa proprietary protocol.
- Support Class A/B/C
- Support EU433 , CN470 , CN779 , EU868 , AS923 , AU915 , KR920 LoRaWAN global frequency plan, support user-defined frequency
- Support network synchronization, PPS pulse input

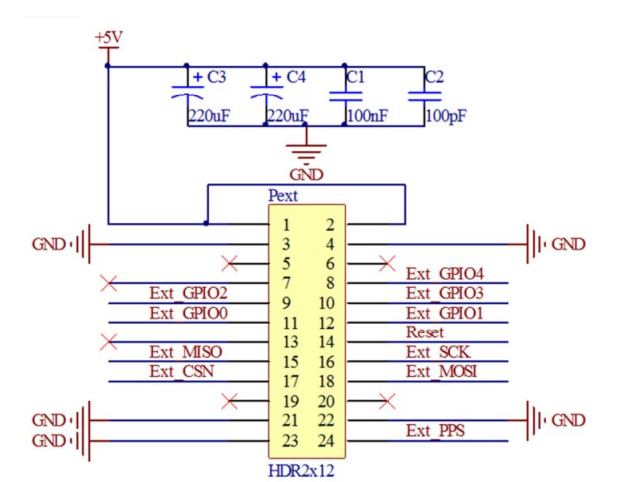

- High expansion: Provide SPI, GPIOs interface, convenient for external circuit
- Long distance: LoRa wireless communication distance 12Km (line of sight), 5Km (urban environment)

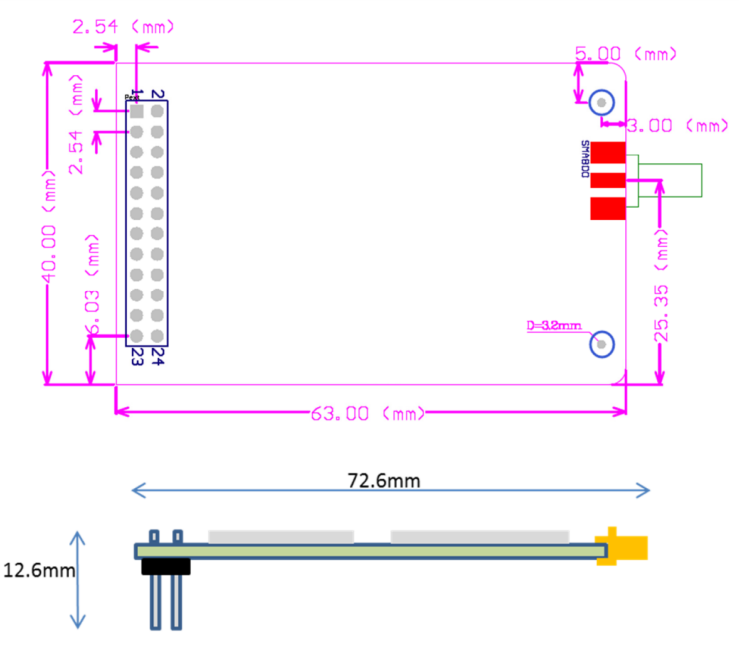

- Small package: 63mm X 40mm 24-pin in-line interface
- Easy to develop: provide source code
